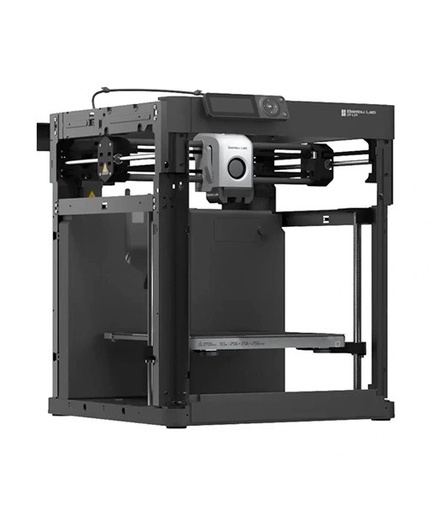

Build Volume: 256 × 256 × 256 mm
• Printer Dimensions: 389 × 389 × 457 mm
• Weight: Approx. 14.3 kg
• Frame Material: Aluminum
• Build Plate: PEI coated flexible plate (can vary with editions)

Printing Performance
• Max Print Speed: 500 mm/s
• Typical Print Speed: 300 mm/s
• Acceleration: Up to 20,000 mm/s²
• Layer Resolution: 0.05 – 0.4 mm
• Nozzle Temp: Up to 300°C
• Heated Bed Temp: Up to 110°C
• Cooling Fans: Part cooling & chamber fan

Precision & Sensors
• Auto Bed Leveling: Yes, LIDAR + pressure sensor
• First Layer Inspection: LIDAR-based
• Vibration Compensation: Input shaping for high-speed accuracy

Filament & Materials
• Filament Diameter: 1.75 mm
• Compatible Materials: PLA, PETG, TPU, ABS, ASA, PC, PA, Carbon/Glass fiber composites
• AMS Support: Yes (up to 4 colors/spools with AMS unit)

Connectivity & Software
• Wi-Fi / LAN: Yes
• SD Card Slot: MicroSD
• Cloud Printing: Supported via Bambu Studio & mobile app
• Software: Bambu Studio (based on PrusaSlicer)

Interface
• Touchscreen: 5-inch full-color touchscreen
• Camera: Built-in camera for remote monitoring and time-lapse

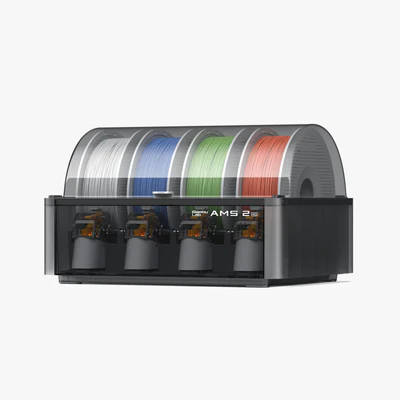

Max Spools per AMS Unit: 4
Expandable to: 16 spools (with 4 AMS units via AMS Hub)
Supported Filament Diameter: 1.75 mm
Max Filament Roll Diameter: 200 mm
Max Filament Roll Width: 70 mm
Filament Sensor: Yes (per spool)
Filament Cutting: Automatic filament cutting before switching
Humidity Control: Yes, sealed unit with desiccant
Color/Material Switching: Automatic via software
Compatibility: Bambu Lab X1 Series (X1C / X1E) & P1 Series (P1P / P1S)
Connection: Direct to the printer or via AMS Hub
